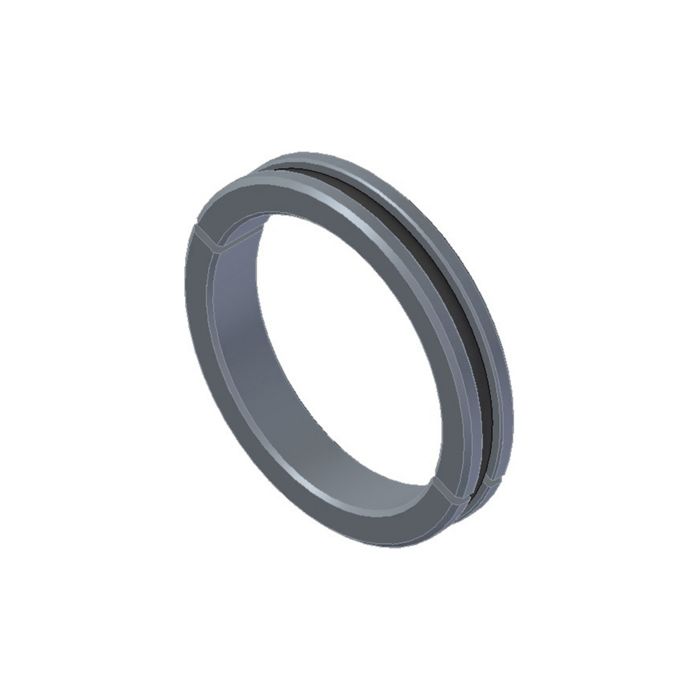

Retaining ring

Standard: 8005

Retaining ring as spare part

Advantages

Several plate thicknesses can be covered with one product by positioning the retaining ring differently
Can be used with rolling bearing system 7231 and system guide pillar 6701
Can be reordered as a spare part
Secure fixing thanks to heat-resistant O-ring (up to 200°C)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Scope of delivery: 1 ring clamp (two-piece), 1 O-ring FKM Material ring clamp: 44SMn28 (1.0762); Material O-ring: Fluorocarbon (FKM) Temperature resistance: up to approx. 200°C.

Technical data

d1 =

Corresponding pillar diameter

d7 =

Inner diameter of the retaining ring (flexible collar)

d8 =

Outer diameter of the retaining ring (flexible collar)

d9 =

Diameter of groove for O-ring

l8 =

Width of the retaining ring (flexible collar)

l9 =

Width of groove for O-ring

3D/CAD data

Downloads

Assembly for version Ø 32/40

Mounting of the ring clamps for Ø 32/40 version

Installation for Ø 32 and Ø 40 versions

Ring edge for Ø 15 / 25 version is symmetrical

Available Dimensions

Grouped product items
Item number	Availability	d1 (mm)	d7	d8 (mm)	d9 (mm)	l8 (mm)	l9 (mm)
Item number: 8005.015.006	Availability	d1 (mm) 15	d7 28	d8 (mm) 35	d9 (mm) 31.2	l8 (mm) 6	l9 (mm) 2.2
Item number: 8005.025.006	Availability	d1 (mm) 25	d7 39	d8 (mm) 47	d9 (mm) 43.2	l8 (mm) 6	l9 (mm) 2.2
Item number: 8005.032.010	Availability	d1 (mm) 32	d7 51	d8 (mm) 59	d9 (mm) 55.2	l8 (mm) 10	l9 (mm) 2.2
Item number: 8005.040.010	Availability	d1 (mm) 40	d7 62	d8 (mm) 71	d9 (mm) 67.2	l8 (mm) 10	l9 (mm) 2.2

If your desired dimensions are not available in this list, select the most suitable one and note your specifications in the inquiry.
