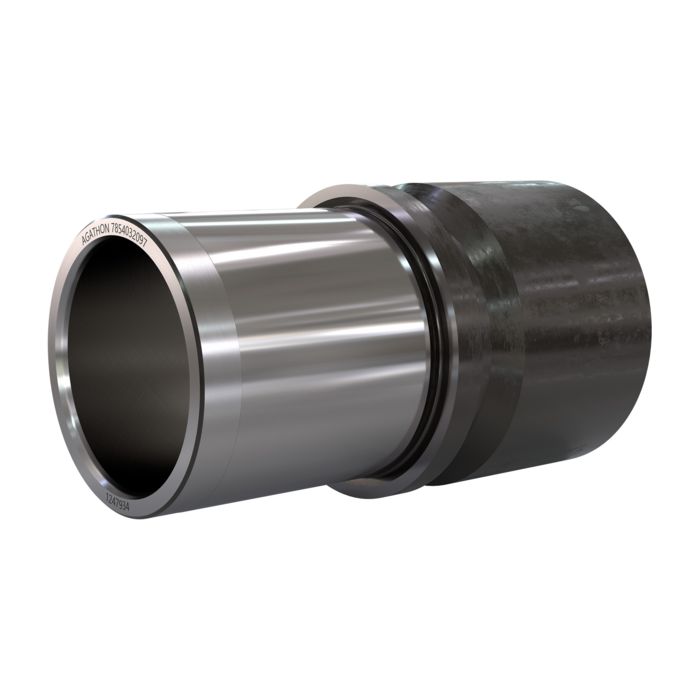

Guide bushing with collar

Standard: 785X Ø32

Guide bushing with collar - Where maximum stability is required

Advantages

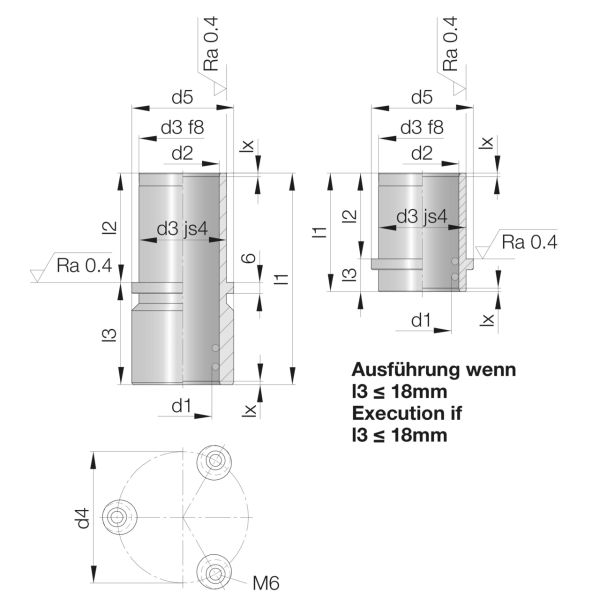

d1 =

Corresponding column diameter

d2 =

Bushing inner diameter

d3 =

Bushing outside diameter for fit js4/H5

d4 =

Pitch circle for supplied retaining pieces

d5 =

Outer diameter collar

l1 =

Overall length of the roller guide bush

l2 =

Length of the diameter d3

l3 =

Remaining length

More Information
Application type 1	Lead

Grouped product items
Item number	Availability	d1 (mm)	d2 (mm)	d3 (mm)	d4 (mm)	d5 (mm)	l1 (mm)	l2 (mm)	l3
Item number: 7851.032.075 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 75	l2 (mm) 30	l3 45
Item number: 7851.032.093 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 93	l2 (mm) 30	l3 63
Item number: 7852.032.093 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 69	l2 (mm) 37	l3 32
Item number: 7854.032.065 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 65	l2 (mm) 47	l3 18
Item number: 7854.032.097 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 97	l2 (mm) 47	l3 50
Item number: 7855.032.080 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 80	l2 (mm) 60	l3 20
Item number: 7855.032.116 STZ	Availability	d1 (mm) 32	d2 (mm) 40	d3 (mm) 48	d4 (mm) 72	d5 (mm) 56	l1 (mm) 116	l2 (mm) 60	l3 56

If your desired dimensions are not available in this list, select the most suitable one and note your specifications in the inquiry.
